Mirror targeting ALS

  1. Home / Aerial Laser Scanners
  2. Mirror targeting ALS

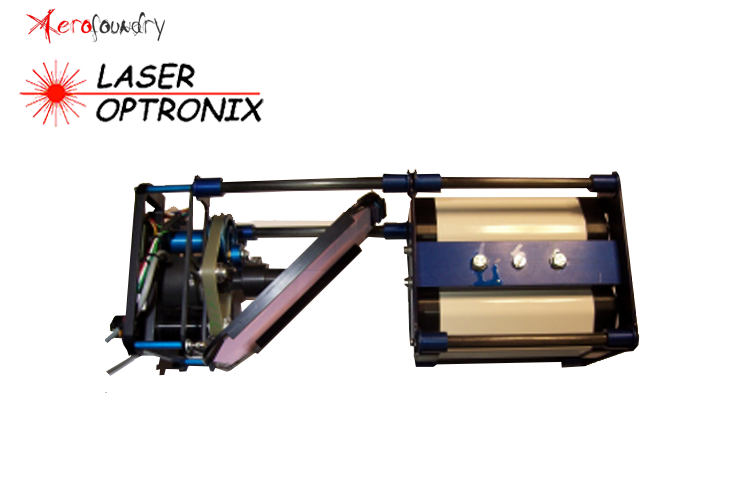

Our mirror targeting ultracompact scanners are designed with a targeting wobbling mirror to downwell and concentrate laser beams, producing high density measures without excessively increasing power consumption.

Specifications

Accuracy of 15cm, repeatability 10cm, measurement rate (max) 36Khz., resolution 1cm, rotation performance with an accuracy of 0.02º, resolution 0.01º,.range 0º to 360º and speed (1 Hz increments) 1-20 Hz.

Laseroptronix mirror targeting scanners are integrated in two variants:

  • ALS-150 for low altitude (150m) onboard Nasr B.
  • ALS-500 for medium altitude (500m)on Nasr A.

To download Nasr ALS Specifications, please contact us.
